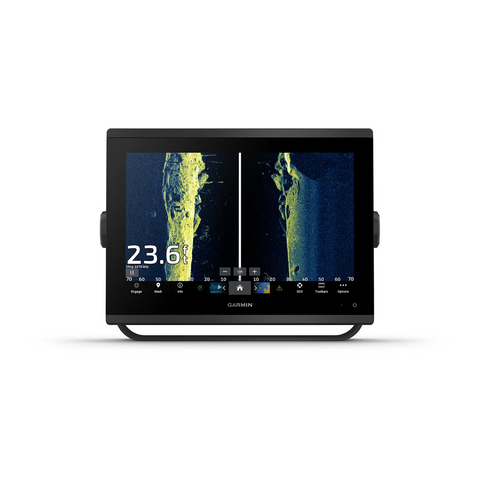

Garmin GPSMAP® 1243xsv SideVü, ClearVü and Traditional CHIRP Sonar with Mapping
PART NUMBER 010-02367-61
Garmin GPSMAP® 1243xsv | Marine Chartplotter
General |
|
| DIMENSION | 12.1” x 8.9” x 3.2” (30.8 x 22.8 x 8.2 cm) |
|---|---|
| TOUCHSCREEN | |
| INPUT | Touchscreen |
| DISPLAY SIZE | 10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal) |
| DISPLAY RESOLUTION | 1280 x 800 pixels |
| DISPLAY TYPE | WXGA |
| WEIGHT |
6.6 lbs (3.0 kg) |
| WATERPROOF |
IPX7 |
| MOUNTING OPTIONS | Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
Maps & Memory |
|
| ACCEPTS DATA CARDS |
2 microSD cards (back of unit) |
|---|---|
| WAYPOINTS |
5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
Sensors |
|
| HAS BUILT-IN RECEIVER | |
|---|---|
| RECEIVER |
10 Hz |
| NMEA 2000 COMPATIBLE | |
| NMEA 0183 COMPATIBLE | |
| GPS | |
| GLONASS | |
| GALILEO | |
| SUPPORTS WAAS | |
Built-in Maps |
|
| BUILT-IN AUTO GUIDANCE+ | |
|---|---|
| GARMIN NAVIONICS+ INLAND & COASTAL | |
| TIDE TABLES | |
Optional Map Support |
|
| GARMIN NAVIONICS+™ | |
|---|---|
| GARMIN NAVIONICS VISION+™ | |
| TOPO | |
| STANDARD MAPPING | |
| GARMIN QUICKDRAW CONTOURS | |
| RASTER CHART SUPPORT | |
Chartplotter Features |
|
| SMART MODE COMPATIBLE | |
|---|---|
| AIS | |
| DSC | |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | |
| GSD BLACK BOX SONAR SUPPORT | |
| GCV BLACK BOX SONAR SUPPORT | |
| ACTIVECAPTAIN® COMPATIBLE |
yes |
| GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE | |
| WIRELESS REMOTE COMPATIBLE | |
| SAILING FEATURES | |
| SPOKEN AUDIO ALERTS | |
| ONEHELM SUPPORT | |
Sonar Features & Specifications |
|
| DISPLAYS SONAR | |
|---|---|
| POWER OUTPUT | 1 kW |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| CLEARVÜ | built-in 260/455/800/1000/1200 kHz |
| SIDEVÜ | built-in 260/455/800/1000/1200 kHz |
| PANOPTIX™ SONAR | |
| LIVESCOPE | |
Connections |
|
| NMEA 2000 PORTS | 1 |
|---|---|
| CONNECTIONS NMEA0183 INPUT PORTS |
1 |
| NMEA 0183 INPUT (TX) PORTS | 1 |
| VIDEO INPUT PORTS |
1 (BNC composite) |
| VIDEO OUTPUT PORTS |
1 HDMI |
| J1939 PORTS | 1 |
| GARMIN MARINE NETWORK PORTS |
2 |
| 12-PIN TRANSDUCER PORTS | 1 |
| USB PORTS | |
| BNC EXTERNAL GPS ANTENNA PORT | |
| BLUETOOTH® PAIRING | |
| ANT+ (CONNECTIVITY) | |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | |
Electrical Features |
|
| POWER INPUT | 10 to 32 Vdc |
|---|---|
| TYPICAL CURRENT DRAW AT 12 VDC | 1.68 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 3.56 A |
| MAXIMUM POWER USAGE AT 10 VDC | 43.0W |
